FIXED IND 8.2UH 3.3A 34.1MOHM SM

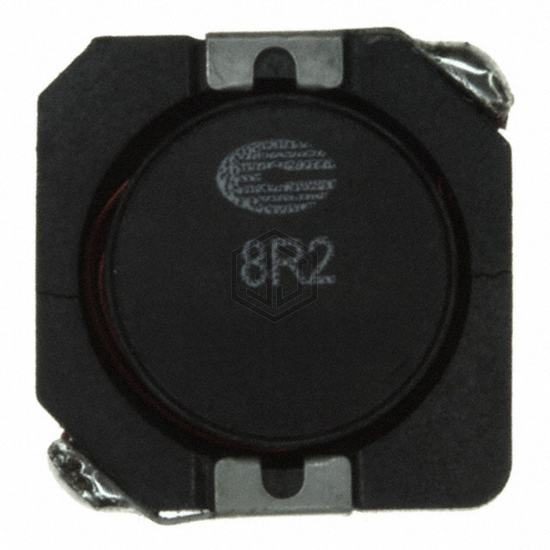

DR1030-8R2-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 8.2UH 3.3A 34.1MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.3 A.
In Stock: 1,221
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.3 A |
| Current - Saturation (Isat) | 3.54A |
| Shielding | Shielded |
| DC Resistance (DCR) | 34.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for DR1030-8R2-R and get a quote within 24 hours.
