FIXED IND 50UH 2.6A 71.5 MOHM TH

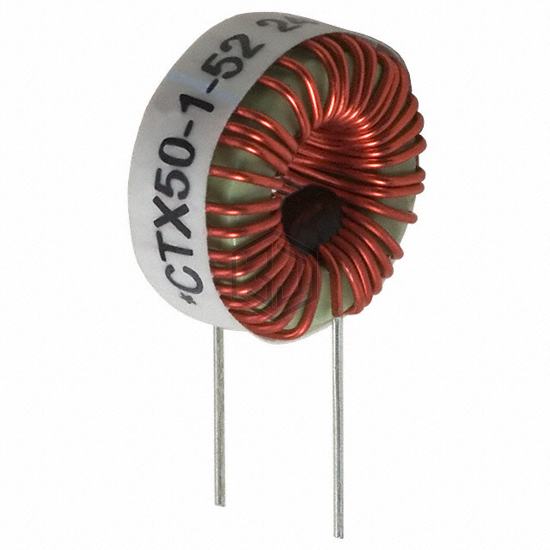

CTX50-1-52-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 50UH 2.6A 71.5 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 75°C, package / case Radial, Vertical (Open), current rating (amps) 2.6 A.
In Stock: 1,416
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 50 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.6 A |
| Current - Saturation (Isat) | 2.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 71.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 75°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.638" Dia x 0.354" W (16.20mm x 9.00mm) |
| Height - Seated (Max) | - |
