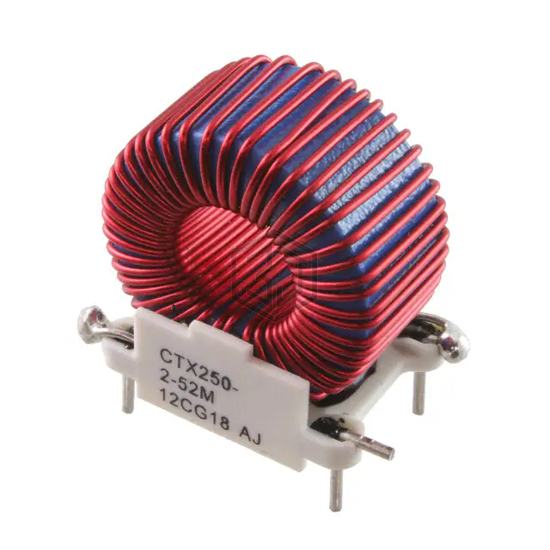

FIXED IND 250UH 4.2A 83.3MOHM TH
CTX250-2-52M-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 250UH 4.2A 83.3MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 75°C, package / case Radial, Vertical, 4 Leads (Open), current rating (amps) 4.2 A.
In Stock: 116
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 250 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.2 A |
| Current - Saturation (Isat) | 4.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 83.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 75°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.394" L x 0.854" W (35.40mm x 21.70mm) |
| Height - Seated (Max) | 1.315" (33.40mm) |
Submit your RFQ for CTX250-2-52M-R and get a quote within 24 hours.
