FIXED IND 1MH 3.1A 212 MOHM TH

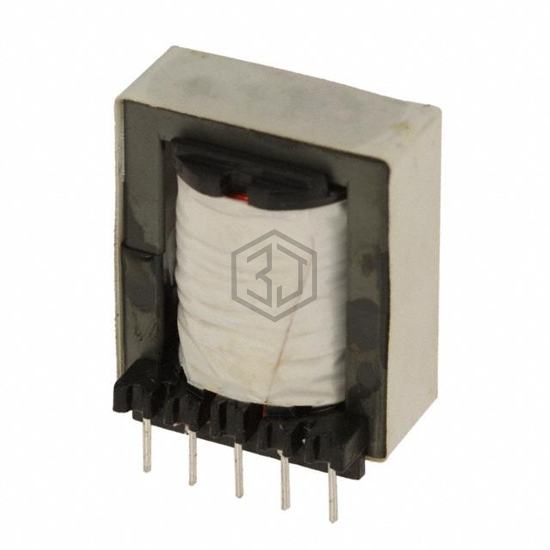

CTX16-15954 is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 1MH 3.1A 212 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 105°C, package / case Radial, Vertical, 10 Leads, current rating (amps) 3.1 A.
In Stock: 118
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | - |
| Current Rating (Amps) | 3.1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 212mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical, 10 Leads |
| Supplier Device Package | - |
| Size / Dimension | 1.181" L x 0.945" W (30.00mm x 24.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
Submit your RFQ for CTX16-15954 and get a quote within 24 hours.
