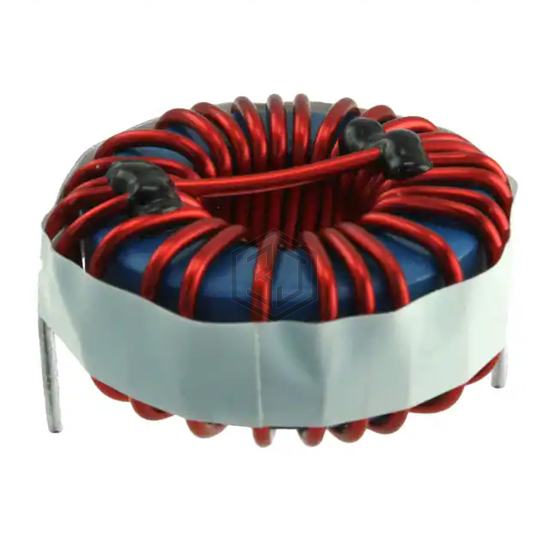

FIXED IND 100UH 17.6A 10.9 MOHM
CTX100-10-52LPR is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 100UH 17.6A 10.9 MOHM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 75°C, package / case Radial, Horizontal (Open), current rating (amps) 17.6 A.
In Stock: 139
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17.6 A |
| Current - Saturation (Isat) | 13A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 75°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 2.244" Dia (57.00mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
Submit your RFQ for CTX100-10-52LPR and get a quote within 24 hours.
