FIXED IND 10UH 4.7A 18.3 MOHM TH

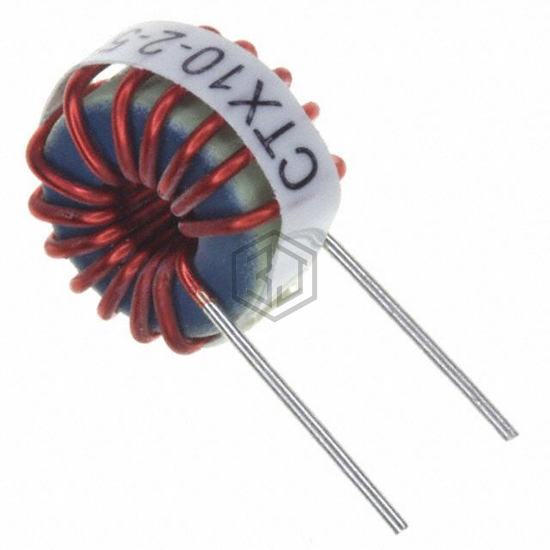

CTX10-2-52-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 10UH 4.7A 18.3 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 75°C, package / case Radial, Vertical (Open), current rating (amps) 4.7 A.
In Stock: 261
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.7 A |
| Current - Saturation (Isat) | 4.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 18.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 75°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.500" Dia x 0.307" W (12.70mm x 7.80mm) |
| Height - Seated (Max) | - |
Submit your RFQ for CTX10-2-52-R and get a quote within 24 hours.
