FIXED IND 210NH 50A 0.29MOHM SMD

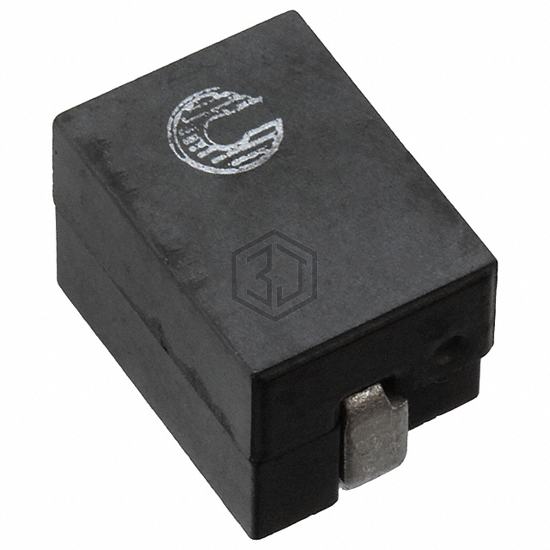

CTX01-18738-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 210NH 50A 0.29MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 50 A.
In Stock: 965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 210 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 50 A |
| Current - Saturation (Isat) | 55A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.29mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.421" L x 0.303" W (10.70mm x 7.70mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for CTX01-18738-R and get a quote within 24 hours.
