FIXED IND 50NH 80A 0.35 MOHM SMD

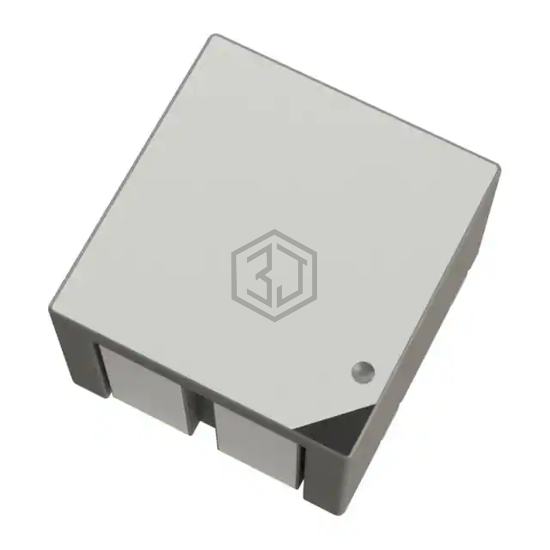

CL0904-2-50TR-R is a Fixed Inductors manufactured by Eaton - Electronics Division. FIXED IND 50NH 80A 0.35 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 80 A.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 50 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 80 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.35mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.787" L x 0.354" W (20.00mm x 9.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for CL0904-2-50TR-R and get a quote within 24 hours.
