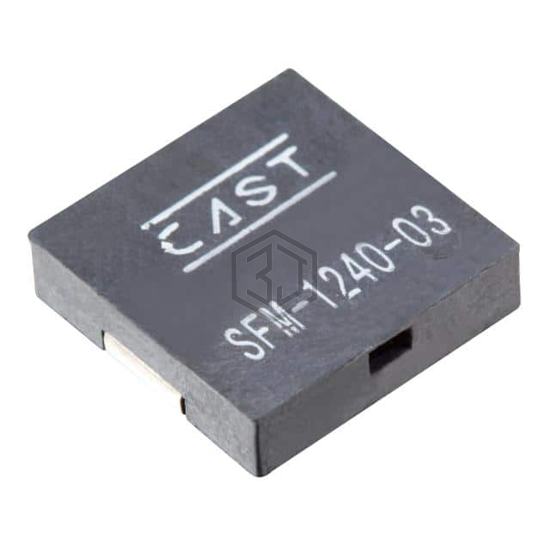

BUZZER PIEZO 3V 12X12MM SMD
SFM-1240-03 is a Alarms, Buzzers, and Sirens manufactured by East Electronics. BUZZER PIEZO 3V 12X12MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 120°C, voltage - rated 3 V, current - supply 3mA.
In Stock: 2,628
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 30V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 66.5dB @ 3V, 30cm |
| Current - Supply | 3mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 120°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
