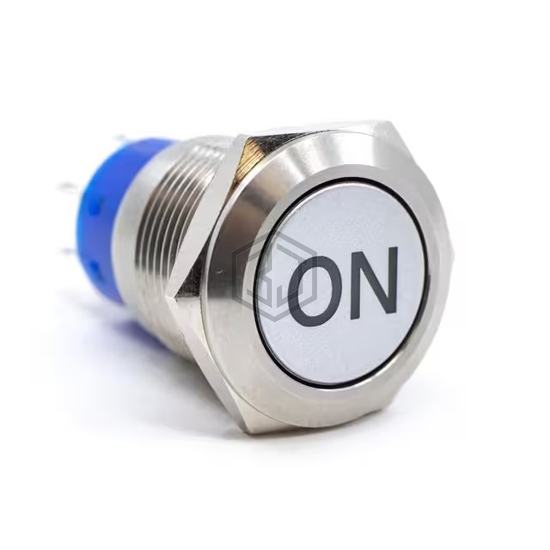

ANTI-VANDEL, 19 MM, DPDT, ILLUM,
ULV4F2HSLL37L22 is a Pushbutton Switches manufactured by E-Switch. ANTI-VANDEL, 19 MM, DPDT, ILLUM,. Key specifications: mounting type Panel Mount, Front, operating temperature -20°C ~ 55°C, voltage rating - ac 125 V, current rating (amps) 3A (AC).
In Stock: 239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | DPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 3A (AC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | - |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 220 VAC |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Operating Temperature | -20°C ~ 55°C |
Submit your RFQ for ULV4F2HSLL37L22 and get a quote within 24 hours.
