ILLUMINATED SEALED IP66 RATED RO

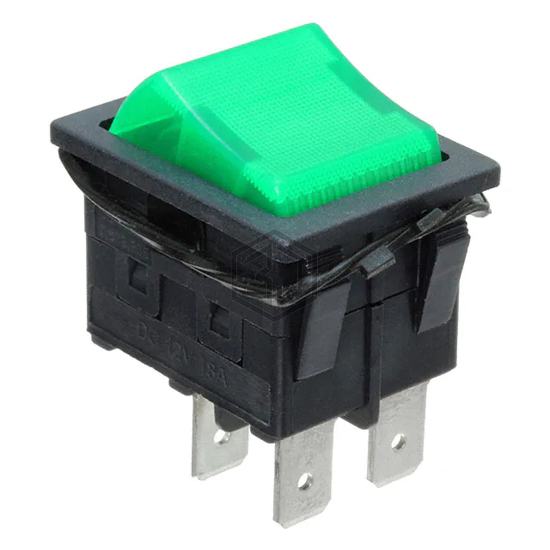

RBW2ABLKGILEF3 is a Rocker Switches manufactured by E-Switch. ILLUMINATED SEALED IP66 RATED RO. Key specifications: mounting type Panel Mount, Snap-In, operating temperature -20°C ~ 85°C, current rating (amps) 18A (DC), termination style Quick Connect - 0.250" (6.3mm).
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Snap-In |
| Circuit | DPST |
| Switch Function | On-Off |
| Current Rating (Amps) | 18A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| Actuator Type | Concave (Curved) - Illuminated |
| Color - Actuator/Cap | Green |
| Actuator Marking | No Marking |
| Illumination Type, Color | Incandescent, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Features | - |
| Panel Cutout Dimensions | Rectangular - 30.00mm x 22.30mm |
| Operating Temperature | -20°C ~ 85°C |
