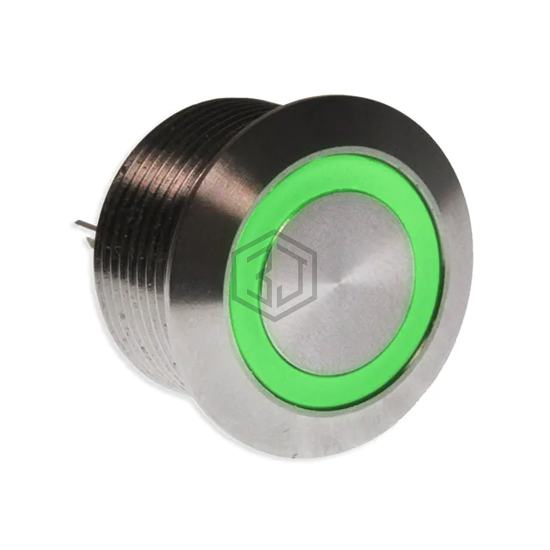

PVT4 ANTI-VANDAL 19MM ILLUMINATE
PVT4FS4SS334 is a Pushbutton Switches manufactured by E-Switch. PVT4 ANTI-VANDAL 19MM ILLUMINATE. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 55°C, voltage rating - dc 24 V, current rating (amps) 50mA (DC).
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 50mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Termination Style | Solder Lug |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Features | Stainless Steel |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Operating Temperature | -25°C ~ 55°C |
Submit your RFQ for PVT4FS4SS334 and get a quote within 24 hours.
