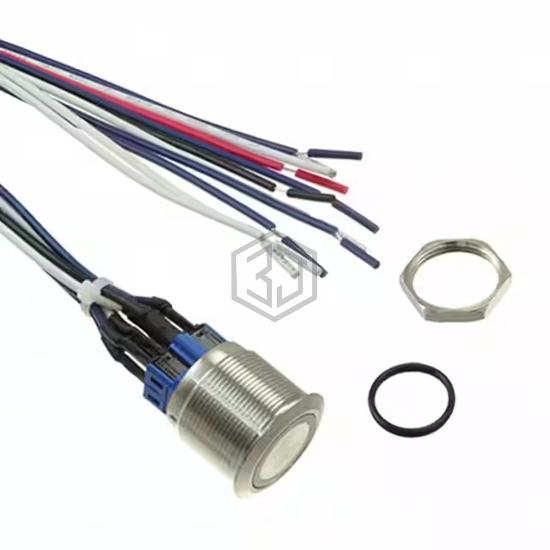

25MM ANTI-VANDAL ILLUMINATED SEA
PV8FWU0SS-311 is a Pushbutton Switches manufactured by E-Switch. 25MM ANTI-VANDAL ILLUMINATED SEA. Key specifications: mounting type Panel Mount, Front, operating temperature -20°C ~ 55°C, voltage rating - dc 48 V, current rating (amps) 2A (DC).
In Stock: 82
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | 4PST-2NO/2NC |
| Switch Function | On-Off, Off-On |
| Current Rating (Amps) | 2A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 48 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (Nominal) | 1.8 VDC |
| Termination Style | Wire Leads |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Features | - |
| Panel Cutout Dimensions | Circular - 25.00mm Dia |
| Operating Temperature | -20°C ~ 55°C |
Submit your RFQ for PV8FWU0SS-311 and get a quote within 24 hours.
