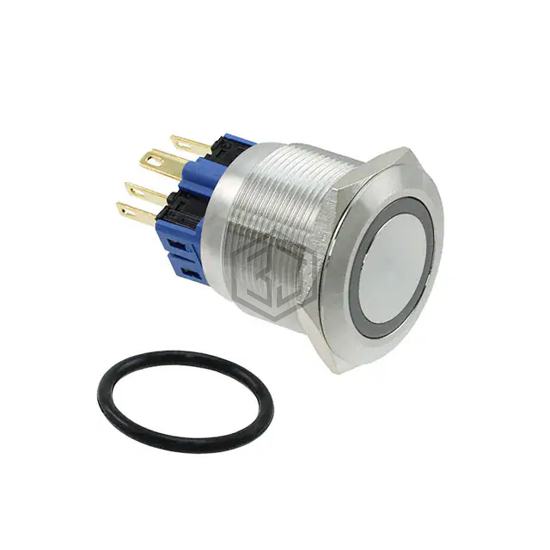

SWITCH PUSHBUTTON DPST 2A 36V
PV8F2T0SS-355 is a Pushbutton Switches manufactured by E-Switch. SWITCH PUSHBUTTON DPST 2A 36V. Key specifications: mounting type Panel Mount, Front, operating temperature -20°C ~ 55°C, voltage rating - dc 36 V, current rating (amps) 2A (DC).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | DPST-NO/NC |
| Switch Function | On-Off, Off-On |
| Current Rating (Amps) | 2A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 36 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Yellow |
| Illumination Voltage (Nominal) | 24 VDC |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Features | - |
| Panel Cutout Dimensions | Circular - 25.00mm Dia |
| Operating Temperature | -20°C ~ 55°C |
Submit your RFQ for PV8F2T0SS-355 and get a quote within 24 hours.
