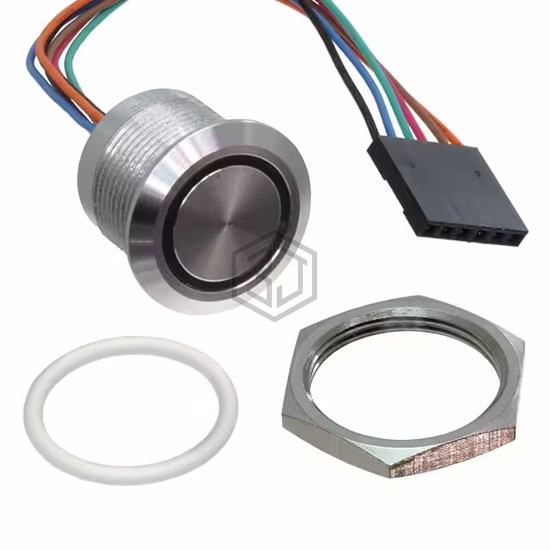

SW CAPACITIVE-ANTI-VANDAL 19MM M
CS4M2FR is a Pushbutton Switches manufactured by E-Switch. SW CAPACITIVE-ANTI-VANDAL 19MM M. Key specifications: mounting type Panel Mount, Front, operating temperature -20°C ~ 65°C, voltage rating - dc 24 V, current rating (amps) 1A (DC).
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Capacitive, Anti-Vandal, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 1A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Red/Green/Blue |
| Illumination Voltage (Nominal) | - |
| Termination Style | Wire Leads with Connector |
| Ingress Protection | - |
| Features | - |
| Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Operating Temperature | -20°C ~ 65°C |
