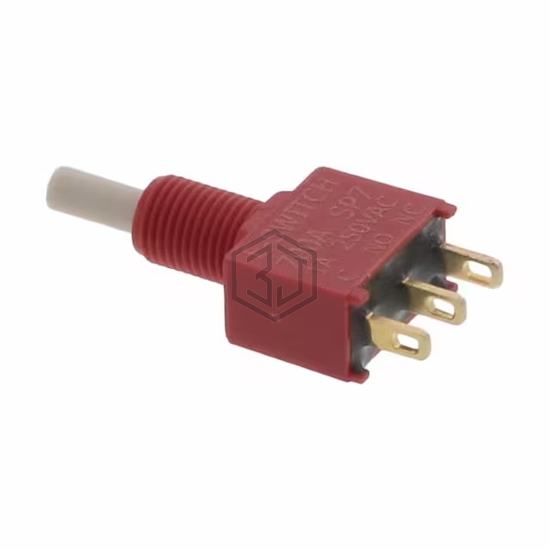

SWITCH PUSHBUTTON SPDT 3A 120V
700ASP7B10M1QE is a Pushbutton Switches manufactured by E-Switch. SWITCH PUSHBUTTON SPDT 3A 120V. Key specifications: mounting type Panel Mount, Rear, operating temperature -30°C ~ 85°C, voltage rating - dc 28 V, current rating (amps) 3A (AC/DC).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Rear |
| Type | Standard |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 3A (AC/DC) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Round, Plunger |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | White |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Operating Temperature | -30°C ~ 85°C |
Submit your RFQ for 700ASP7B10M1QE and get a quote within 24 hours.
