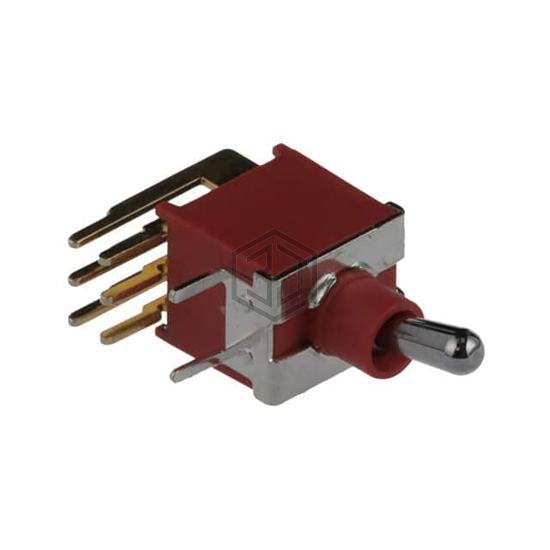

SWITCH TOGGLE DPDT 3A 120V
200AWMDP1T2A1M6QE is a Toggle Switches manufactured by E-Switch. SWITCH TOGGLE DPDT 3A 120V. Key specifications: mounting type Through Hole, Right Angle, operating temperature -30°C ~ 85°C, voltage rating - dc 28 V, current rating (amps) 3A (AC/DC).
In Stock: 243
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole, Right Angle |
| Circuit | DPDT |
| Switch Function | On-On |
| Current Rating (Amps) | 3A (AC/DC) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Standard Round |
| Actuator Length | 6.10mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | PC Pin |
| Panel Cutout Dimensions | - |
| Bushing Thread | Unthreaded |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -30°C ~ 85°C |
