DC/DC CONVERTER 24V INPUT, +/-5V

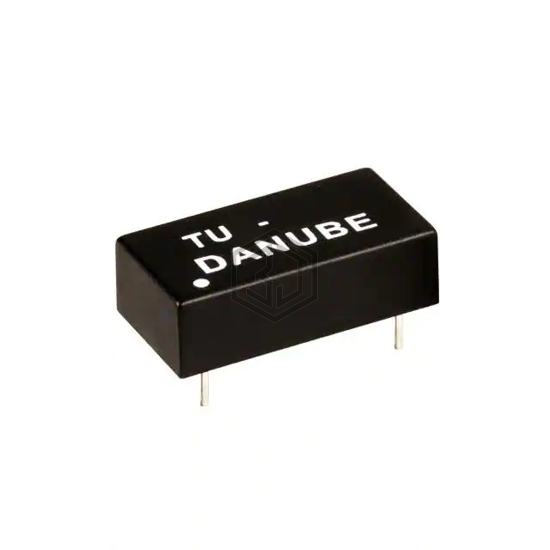

TUD-2405A is a DC DC Converters manufactured by Diwell Electronics. DC/DC CONVERTER 24V INPUT, +/-5V. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 71°C, package / case 14-DIP Module, 6 Leads, current - output (max) 100mA, 100mA.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 71°C |
| Efficiency | 73% |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module, 6 Leads |
| Size / Dimension | 0.80" L x 0.40" W x 0.28" H (20.3mm x 10.2mm x 7.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for TUD-2405A and get a quote within 24 hours.
