DC/DC CONVERTER 5V INPUT, +/-15V

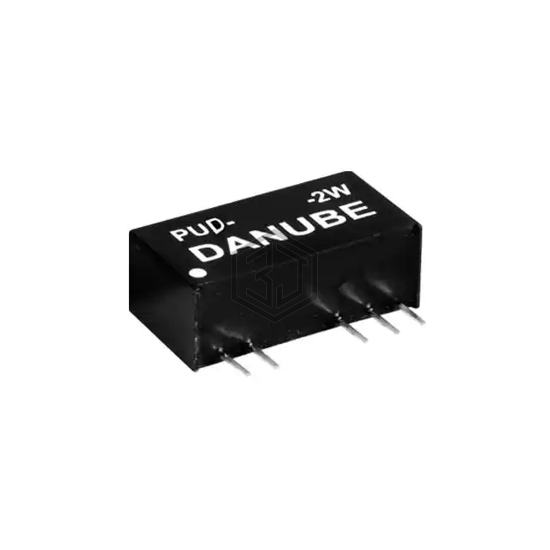

PUD-0515-2W is a DC DC Converters manufactured by Diwell Electronics. DC/DC CONVERTER 5V INPUT, +/-15V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 71°C, package / case 6-SIP Module, 5 Leads, current - output (max) 67mA, 67mA.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA, 67mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 71°C |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.1mm x 10.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, FCC |
| Standard Number | - |
Submit your RFQ for PUD-0515-2W and get a quote within 24 hours.
