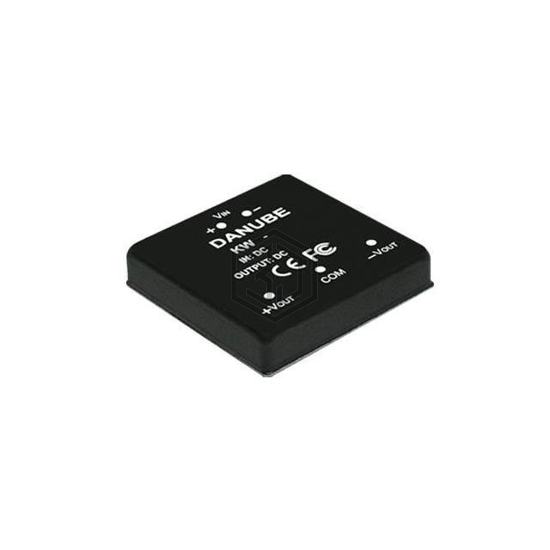

DC/DC CONVERTER 12V WIDE INPUT,
KWS-1205-3K is a DC DC Converters manufactured by Diwell Electronics. DC/DC CONVERTER 12V WIDE INPUT,. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 71°C, package / case 5-DIP Module, 4 Leads, current - output (max) 3A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | 15 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 71°C |
| Efficiency | 77% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module, 4 Leads |
| Size / Dimension | 2.00" L x 2.00" W x 0.43" H (50.8mm x 50.8mm x 11.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, FCC |
| Standard Number | - |
Submit your RFQ for KWS-1205-3K and get a quote within 24 hours.
