LCD MOD 80 DIG 20 X 4 REFLECTIVE

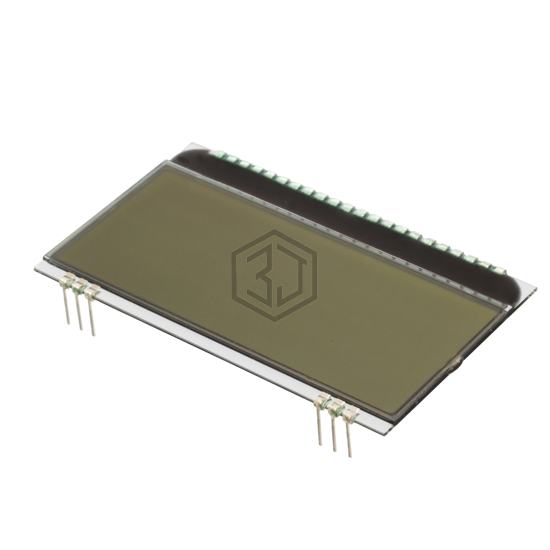

EA DOGM204N-A is a Display Modules - LCD, OLED Character and Numeric manufactured by Display Visions. LCD MOD 80 DIG 20 X 4 REFLECTIVE. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 3.3V, interface I²C, Parallel, SPI, display type FSTN - Film Super-Twisted Nematic.
In Stock: 679
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 80 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Reflective |
| Character Size | 4.83mm H x 2.46mm W |
| Outline L x W x H | 66.00mm x 38.10mm x 2.00mm |
| Viewing Area | 59.00mm L x 26.00mm W |
| Backlight | Without Backlight |
| Voltage - Supply | 3.3V |
| Dot Size | 0.48mm W x 0.59mm H |
| Interface | I²C, Parallel, SPI |
| Controller Type | - |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | White |
Submit your RFQ for EA DOGM204N-A and get a quote within 24 hours.
