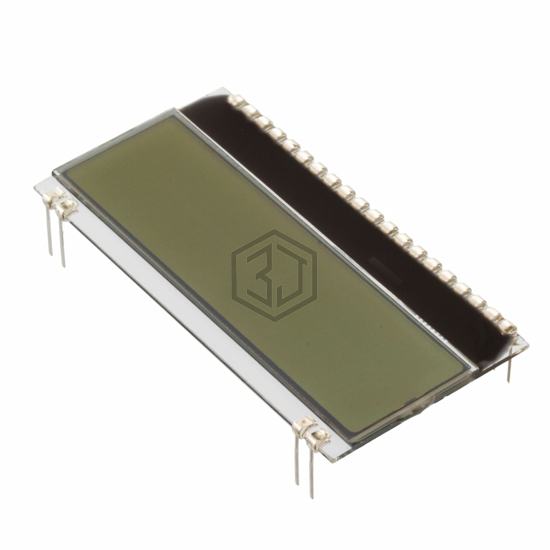

LCD MOD 32DIG 16X2 TRANSFLECTIVE
EA DOGM162W-A is a Display Modules - LCD, OLED Character and Numeric manufactured by Display Visions. LCD MOD 32DIG 16X2 TRANSFLECTIVE. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 3.3V, interface Parallel, 8-Bit, SPI, display type FSTN - Film Super-Twisted Nematic.
In Stock: 12,743
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 5.57mm H x 2.47mm W |
| Outline L x W x H | 55.00mm x 27.94mm x 2.00mm |
| Viewing Area | 51.00mm L x 14.50mm W |
| Backlight | Without Backlight |
| Voltage - Supply | 3.3V |
| Dot Size | 0.47mm W x 0.67mm H |
| Interface | Parallel, 8-Bit, SPI |
| Controller Type | - |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | White |
Submit your RFQ for EA DOGM162W-A and get a quote within 24 hours.
