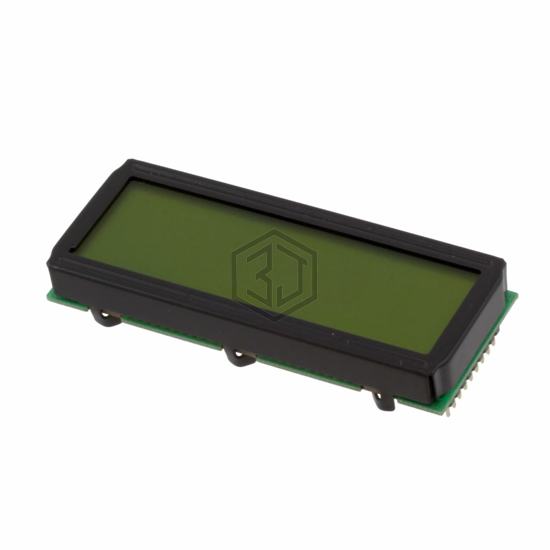

LCD MOD 8DIG 8X1 TRANSMIS YLW/GR
EA DIP081-CHNLED is a Display Modules - LCD, OLED Character and Numeric manufactured by Display Visions. LCD MOD 8DIG 8X1 TRANSMIS YLW/GR. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 2.7V ~ 5.5V, interface Parallel, 8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 8,592
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 8 |
| Display Format | 8 x 1 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Character Size | 11.48mm H x 5.96mm W |
| Outline L x W x H | 66.00mm x 26.80mm x 10.80mm |
| Viewing Area | 61.00mm L x 19.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 2.7V ~ 5.5V |
| Dot Size | 1.16mm W x 1.40mm H |
| Interface | Parallel, 8-Bit |
| Controller Type | - |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Gray |
| Background Color | Green |
Submit your RFQ for EA DIP081-CHNLED and get a quote within 24 hours.
