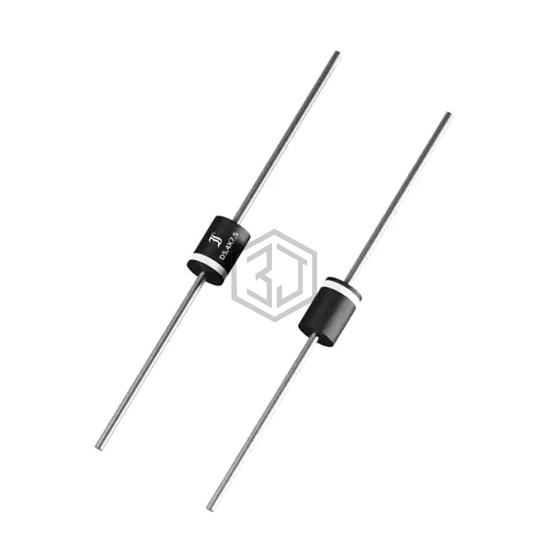

SB820
SCHOTTKY D5.4X7.5 20V 8A
SB820 is a Diodes - Rectifiers - Single manufactured by Diotec Semiconductor. SCHOTTKY D5.4X7.5 20V 8A. Key specifications: mounting type Through Hole, package / case DO-201AA, DO-27, Axial.
In Stock: 1,250
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 20 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Operating Temperature - Junction | -50°C ~ 150°C |
Frequently Asked Questions
SB820 is a Diodes - Rectifiers - Single manufactured by Diotec Semiconductor. SCHOTTKY D5.4X7.5 20V 8A
The mounting type of SB820 is Through Hole.
The package type of SB820 is DO-201AA, DO-27, Axial.
