MOSFET, -40V, -40A, P, 22.7W

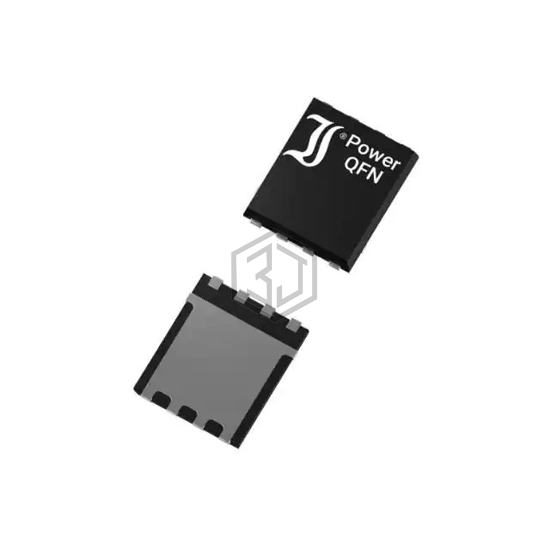

DI040P04PT-AQ is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET, -40V, -40A, P, 22.7W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.
In Stock: 9,431
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 59 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3538 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 22.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-QFN (3x3) |
| Package / Case | 8-PowerWDFN |
Submit your RFQ for DI040P04PT-AQ and get a quote within 24 hours.
