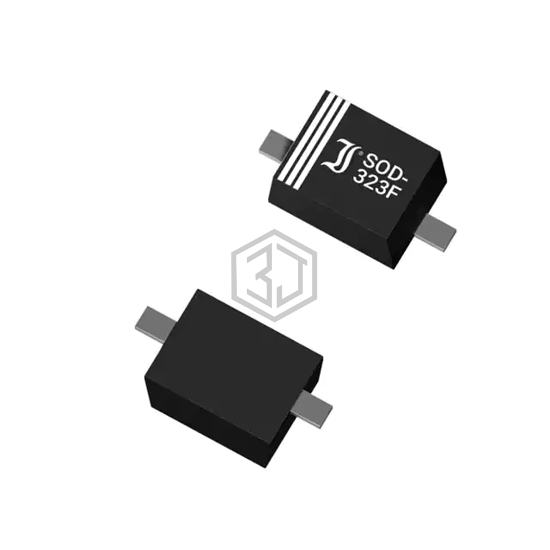

BAT54WS-AQ
SCHOTTKY SOD-323 30V 0.2A
BAT54WS-AQ is a Diodes - Rectifiers - Single manufactured by Diotec Semiconductor. SCHOTTKY SOD-323 30V 0.2A. Key specifications: mounting type Surface Mount, package / case SC-90, SOD-323F.
In Stock: 3,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 6 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-90, SOD-323F |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
BAT54WS-AQ is a Diodes - Rectifiers - Single manufactured by Diotec Semiconductor. SCHOTTKY SOD-323 30V 0.2A
The mounting type of BAT54WS-AQ is Surface Mount.
The package type of BAT54WS-AQ is SC-90, SOD-323F.
