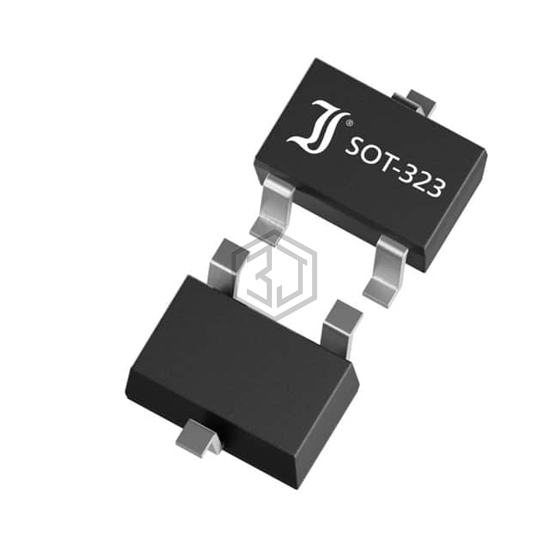

MOSFET, SOT-323, 60V, 0.115A, N,
2N7002W is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET, SOT-323, 60V, 0.115A, N,. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-70, SOT-323.
In Stock: 2,504
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 115mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 13.5Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 200mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-323 |
| Package / Case | SC-70, SOT-323 |
Submit your RFQ for 2N7002W and get a quote within 24 hours.
