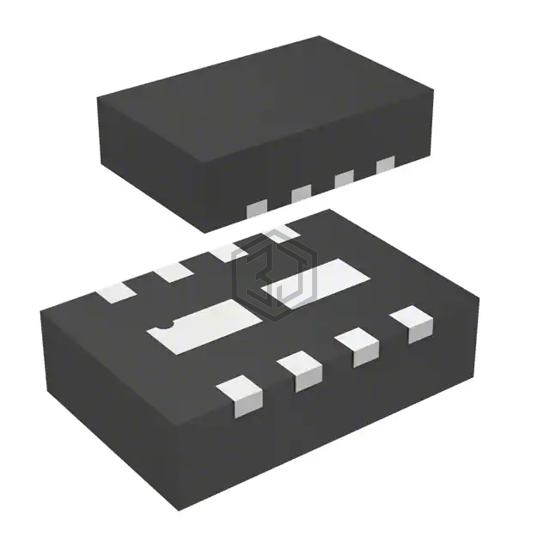

TRANS NPN/PNP 20V 4.5A/3.5A 8DFN
ZXTC6718MCTA is a Transistors - Bipolar (BJT) - Arrays manufactured by Diodes Incorporated. TRANS NPN/PNP 20V 4.5A/3.5A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-WDFN Exposed Pad, current - collector (ic) (max) 4.5A, 3.5A.
In Stock: 5,337
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | NPN, PNP |
| Current - Collector (Ic) (Max) | 4.5A, 3.5A |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 125mA, 4.5A, 300mV @ 350mA, 3.5A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2A, 2V / 150 @ 2A, 2V |
| Power - Max | 1.7W |
| Frequency - Transition | 140MHz, 180MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | W-DFN3020-8 |
Submit your RFQ for ZXTC6718MCTA and get a quote within 24 hours.
