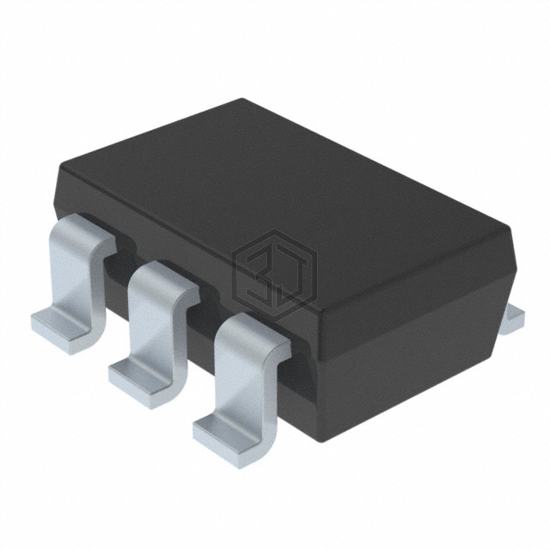

TRANS NPN/PNP 12V 5A/3.5A SOT23
ZXTC2061E6TA is a Transistors - Bipolar (BJT) - Arrays manufactured by Diodes Incorporated. TRANS NPN/PNP 12V 5A/3.5A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6, current - collector (ic) (max) 5A, 3.5A.
In Stock: 5,817
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | NPN, PNP |
| Current - Collector (Ic) (Max) | 5A, 3.5A |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| Vce Saturation (Max) @ Ib, Ic | 180mV @ 100mA, 5A, 200mV @ 350mA, 3.5A |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 480 @ 1A, 2V / 290 @ 1A, 2V |
| Power - Max | 1.1W |
| Frequency - Transition | 260MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-26 |
