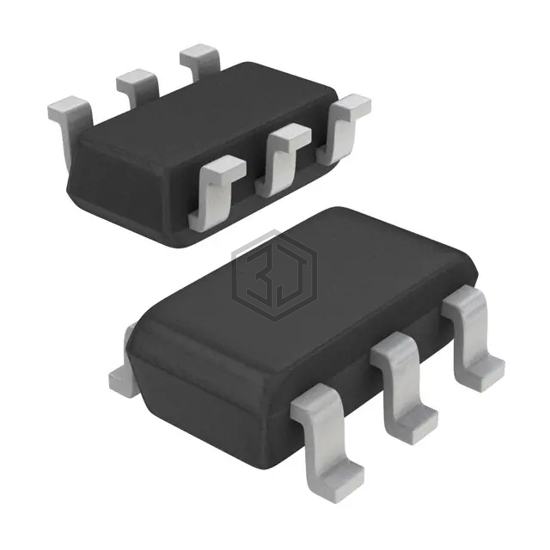

MOSFET N-CH 20V 3.7A SOT23-6
ZXMN2A03E6TA is a Transistors - FETs, MOSFETs - Single manufactured by Diodes Incorporated. MOSFET N-CH 20V 3.7A SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6.
In Stock: 5,195
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 7.2A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 8.2 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 837 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Package / Case | SOT-23-6 |
Submit your RFQ for ZXMN2A03E6TA and get a quote within 24 hours.
