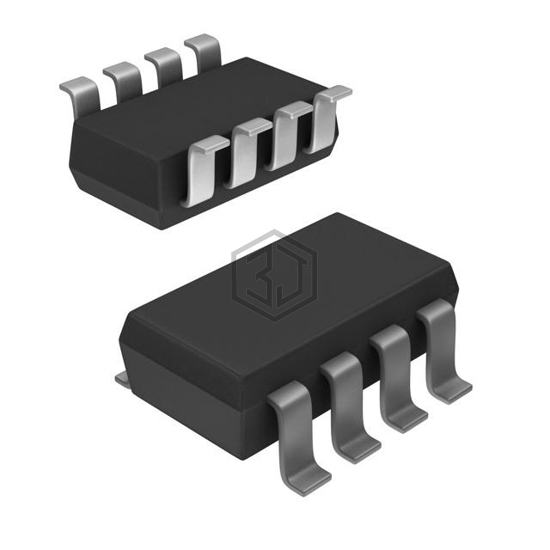

IC GATE DRVR HI-SIDE/LO-SIDE SM8
ZXGD3101T8TA is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRVR HI-SIDE/LO-SIDE SM8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5V ~ 15V, package / case SOT-223-8.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5V ~ 15V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 305ns, 20ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-8 |
| Supplier Device Package | SM8 |
ZXGD3101T8TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ZXGD3101N8TC | Diodes Incorporated | IC GATE DRVR HI-SIDE/LO-SIDE 8SO | 100% | View |
| ZXGD3103N8TC | Diodes Incorporated | IC GATE DRVR HI-SIDE/LO-SIDE 8SO | 94% | View |
| ZXGD3104N8TC | Diodes Incorporated | IC GATE DRVR HI-SIDE/LO-SIDE 8SO | 93% | View |
| MAX15054AUT+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR HIGH-SIDE SOT23-6 | 74% | View |
| TC1413NEUA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 71% | View |
| TC1413EOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 71% | View |
Submit your RFQ for ZXGD3101T8TA and get a quote within 24 hours.
