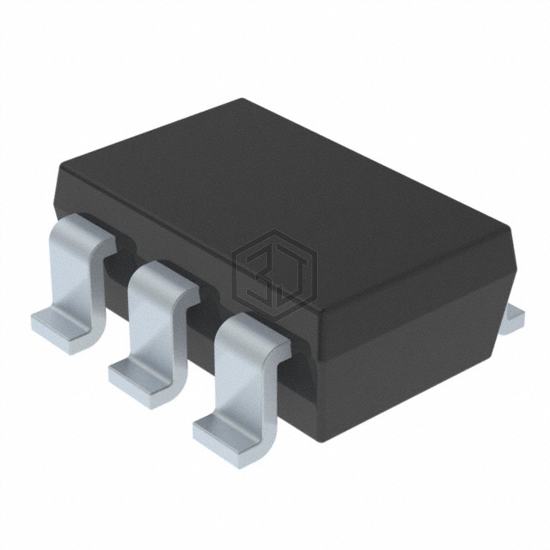

TRANSISTOR GATE DRIVER SOT26 T&R
ZXGD3004E6QTA is a PMIC - Gate Drivers manufactured by Diodes Incorporated. TRANSISTOR GATE DRIVER SOT26 T&R. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 40V, package / case SOT-23-6.
In Stock: 2,982
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Independent |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 40V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 8A, 8A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 14ns, 14ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-26 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN3224TUMX-F085 | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 57% | View |
| FAN3224TUM1X-F085 | onsemi | IC GATE DRVR LOW-SIDE DUAL 4A | 57% | View |
| FAN3224TM1X-F085 | onsemi | IC GATE DRVR LOW-SIDE DUAL 4A | 57% | View |
| IXDD404SIA-16 | IXYS | IC GATE DRVR LOW-SIDE 16SOIC | 51% | View |
| IXDF404SI-16 | IXYS | IC GATE DRVR LOW-SIDE 16SOIC | 51% | View |
| IXDN404SIA | IXYS | IC GATE DRVR LOW-SIDE 8SOIC | 51% | View |
Submit your RFQ for ZXGD3004E6QTA and get a quote within 24 hours.
