TRANS PNP 500V 0.15A E-LINE

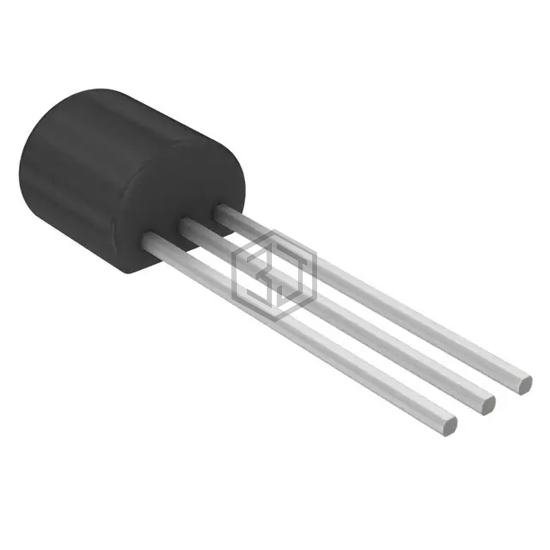

ZTX560 is a Transistors - Bipolar (BJT) - Single manufactured by Diodes Incorporated. TRANS PNP 500V 0.15A E-LINE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case E-Line-3, current - collector (ic) (max) 150 mA.
In Stock: 8,837
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 150 mA |
| Voltage - Collector Emitter Breakdown (Max) | 500 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 10mA, 50mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 50mA, 10V |
| Power - Max | 1 W |
| Frequency - Transition | 60MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | E-Line-3 |
| Supplier Device Package | E-Line (TO-92 compatible) |
Submit your RFQ for ZTX560 and get a quote within 24 hours.
