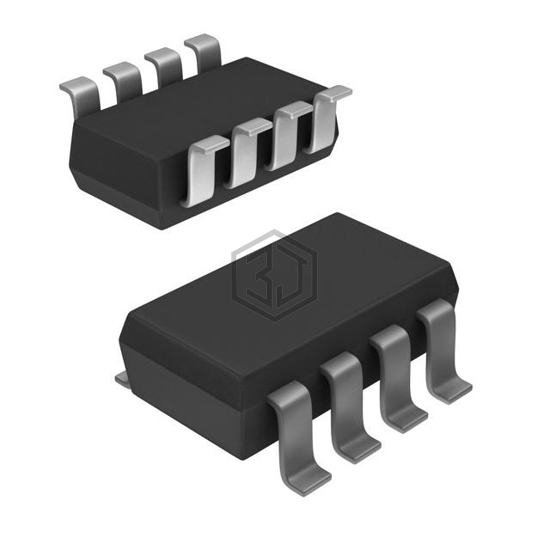

TRANS 2NPN/2PNP 40V 2A SOT223
ZHB6790TA is a Transistors - Bipolar (BJT) - Arrays manufactured by Diodes Incorporated. TRANS 2NPN/2PNP 40V 2A SOT223. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-223-8, current - collector (ic) (max) 2A.
In Stock: 26,696
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | 2 NPN, 2 PNP (H-Bridge) |
| Current - Collector (Ic) (Max) | 2A |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 750mV @ 50mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1A, 2V |
| Power - Max | 1.25W |
| Frequency - Transition | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-8 |
| Supplier Device Package | SM8 |
Submit your RFQ for ZHB6790TA and get a quote within 24 hours.
