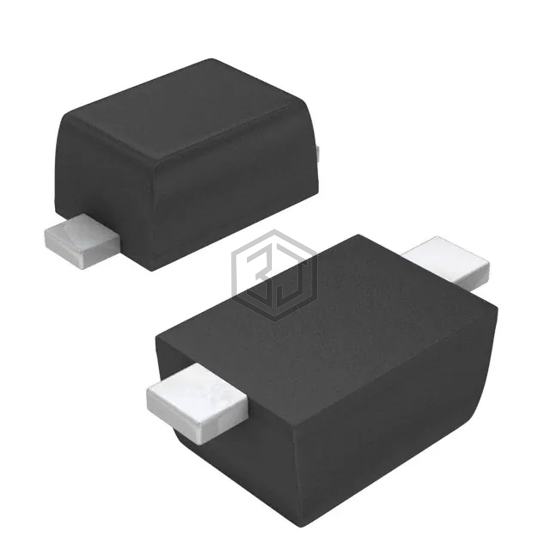

SDM20U30Q-7
SCHOTTKY DIODE SOD523
SDM20U30Q-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. SCHOTTKY DIODE SOD523. Key specifications: mounting type Surface Mount, package / case SC-79, SOD-523.
In Stock: 11,900
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 150 µA @ 30 V |
| Capacitance @ Vr, F | 20pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Operating Temperature - Junction | -65°C ~ 125°C |
Frequently Asked Questions
SDM20U30Q-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. SCHOTTKY DIODE SOD523
The mounting type of SDM20U30Q-7 is Surface Mount.
The package type of SDM20U30Q-7 is SC-79, SOD-523.
