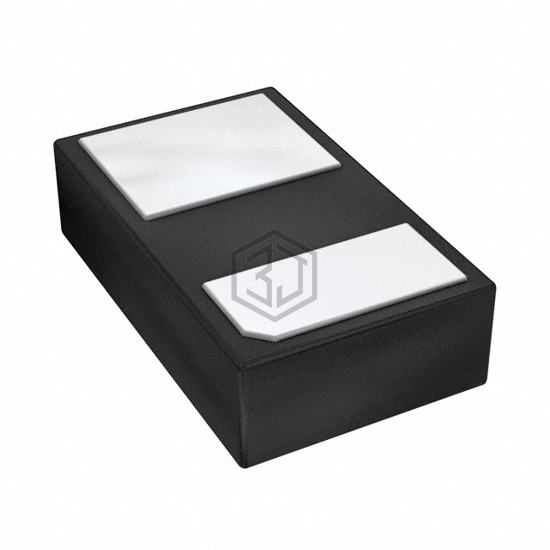

SDM1A30CSP-7
SCHOTTKY DIODE X3-WLB1006-2
SDM1A30CSP-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. SCHOTTKY DIODE X3-WLB1006-2. Key specifications: mounting type Surface Mount, package / case 2-XDFN.
In Stock: 3,167
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 525 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 30 V |
| Capacitance @ Vr, F | 40pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 2-XDFN |
| Supplier Device Package | X3-WLB1006-2 |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
SDM1A30CSP-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. SCHOTTKY DIODE X3-WLB1006-2
The mounting type of SDM1A30CSP-7 is Surface Mount.
The package type of SDM1A30CSP-7 is 2-XDFN.
