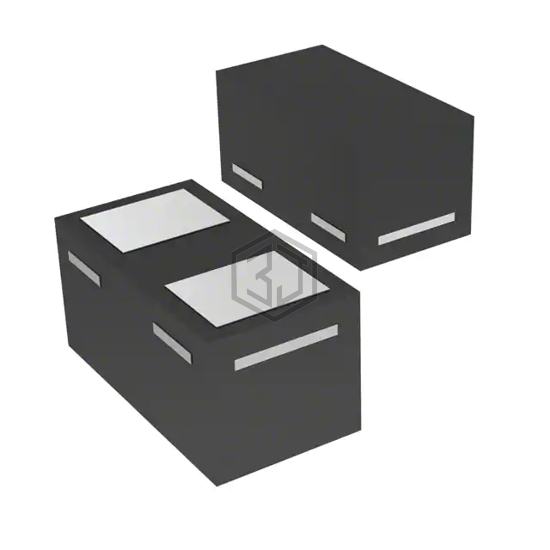

SDM02U30CSP-7
DIODE SCHOTTKY X3-WLB0603-2
SDM02U30CSP-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. DIODE SCHOTTKY X3-WLB0603-2. Key specifications: mounting type Surface Mount, package / case 2-XDFN.
In Stock: 17
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 200 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V |
| Capacitance @ Vr, F | 9pF @ 5V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 2-XDFN |
| Supplier Device Package | X3-WLB0603-2 |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
SDM02U30CSP-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. DIODE SCHOTTKY X3-WLB0603-2
The mounting type of SDM02U30CSP-7 is Surface Mount.
The package type of SDM02U30CSP-7 is 2-XDFN.
