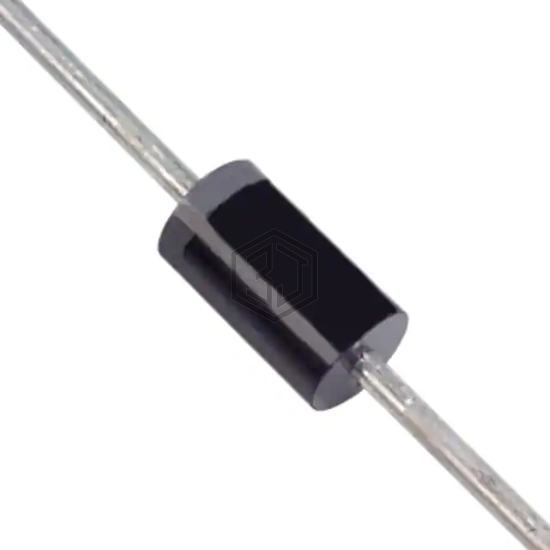

SB560-A
DIODE SCHOTTKY 60V 5A
SB560-A is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. DIODE SCHOTTKY 60V 5A. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.
In Stock: 491
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 0.67 V @ 5 A |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 0.5 mA @ 60 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -65°C ~ 150°C |
Frequently Asked Questions
SB560-A is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. DIODE SCHOTTKY 60V 5A
The mounting type of SB560-A is Through Hole.
The package type of SB560-A is DO-201AD, Axial.
Yes, SB560-A is listed as Obsolete. Consider requesting a quote for alternative parts.
