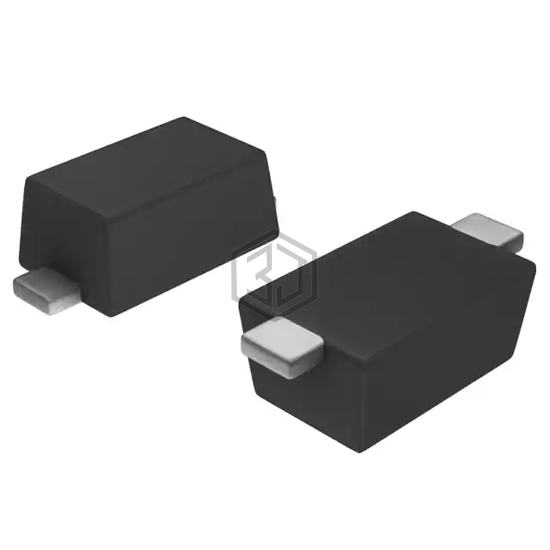

S1MSWF-7
DIODE GEN PURP 1KV 1A SOD123F
S1MSWF-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. DIODE GEN PURP 1KV 1A SOD123F. Key specifications: mounting type Surface Mount, package / case SOD-123F.
In Stock: 1
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1 µs |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
| Capacitance @ Vr, F | 6pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123F |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
S1MSWF-7 is a Diodes - Rectifiers - Single manufactured by Diodes Incorporated. DIODE GEN PURP 1KV 1A SOD123F
The mounting type of S1MSWF-7 is Surface Mount.
The package type of S1MSWF-7 is SOD-123F.
Yes, S1MSWF-7 is listed as Obsolete. Consider requesting a quote for alternative parts.
