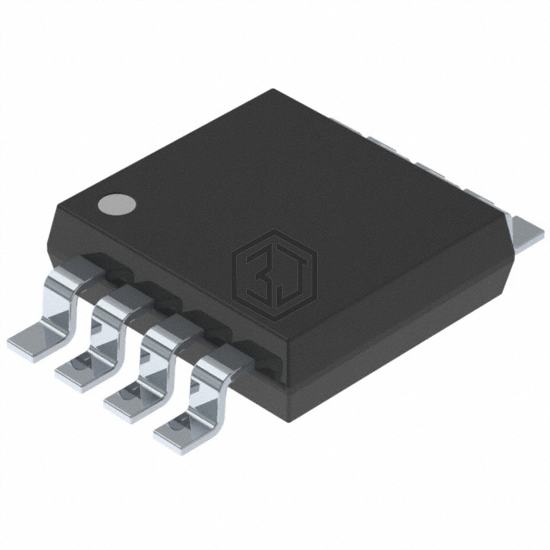

IC ANLG SW SPST DUAL NO 8-MSOP
PS323CUAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC ANLG SW SPST DUAL NO 8-MSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 1,238
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 2.5V ~ 16 V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 75ns, 50ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
PS323CUAEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG9233EDY-T1-GE3 | Vishay Siliconix | IC SWITCH DUAL SPST 8SOIC | 88% | View |
| TS12A4515DBVR | Texas Instruments | IC SWITCH SPST SOT23-5 | 68% | View |
| MAX4501EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 55% | View |
| MAX4501EXK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SC70-5 | 55% | View |
| DG4053EEY-T1-GE3 | Vishay Siliconix | IC MUX TRIPLE 2CHAN 16-SOIC | 54% | View |
| DG4053EEQ-T1-GE3 | Vishay Siliconix | IC MUX TRIPLE 2CHAN 16-TSSOP | 54% | View |
Submit your RFQ for PS323CUAEX and get a quote within 24 hours.
