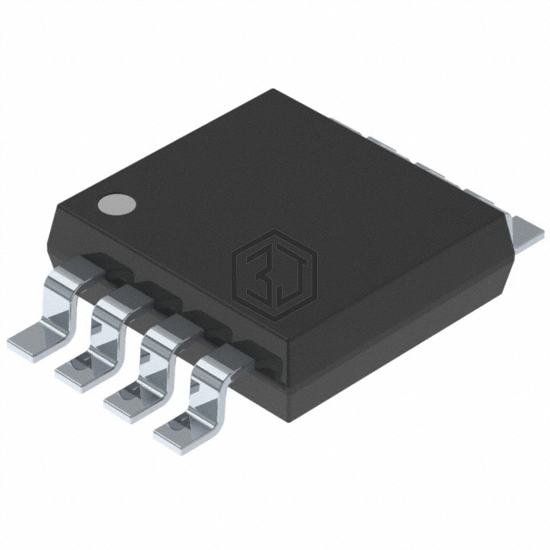

IC SWITCH DUAL SPST MSOP
PS320CUAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPST MSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 3,144
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
PS320CUAEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL8323IBZ-T | Intersil | SPST, 2 FUNC, 1 CHANNEL, PDSO8 | 100% | View |
| MAX398ESE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 86% | View |
| MAX396CAI+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16X1 28SSOP | 86% | View |
| DG403DVZ | Renesas Electronics America Inc | IC SWITCH DUAL DPST 16TSSOP | 71% | View |
| MAX4632CSE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 16SOIC | 64% | View |
| DG409EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TSSOP | 58% | View |
Submit your RFQ for PS320CUAEX and get a quote within 24 hours.
