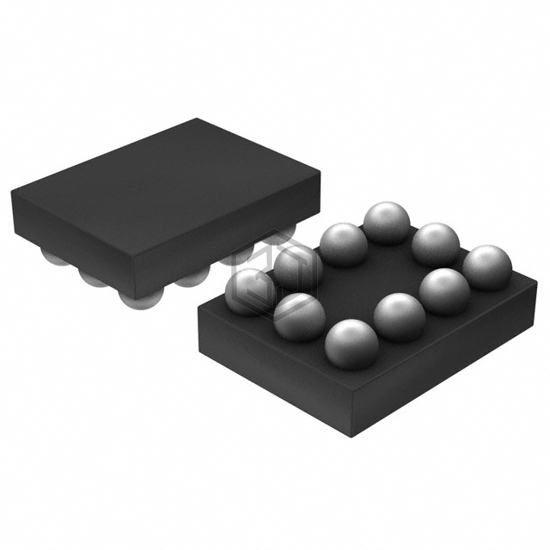

IC SWITCH DUAL SPDT 10CSP
PI5A4684GAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPDT 10CSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-WFBGA, CSPBGA, number of circuits 2.
In Stock: 2,936
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 60ns, 20ns |
| -3db Bandwidth | 27MHz |
| Charge Injection | 54pC |
| Channel Capacitance (CS(off), CD(off)) | 84pF |
| Current - Leakage (IS(off)) (Max) | 80nA |
| Crosstalk | -70dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFBGA, CSPBGA |
| Supplier Device Package | 10-CSP (2.07x1.55) |
PI5A4684GAEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LMS4684ITLX/NOPB | Texas Instruments | IC SWITCH DUAL SPDT 12USMD | 75% | View |
| LMS4684LDX/NOPB | Texas Instruments | IC SWITCH DUAL SPDT 10WSON | 75% | View |
| LMS4684LDX | Texas Instruments | IC SWITCH DUAL SPDT 10WSON | 75% | View |
| AOZ6237QI | Alpha & Omega Semiconductor Inc. | IC ANLG SWITCH DUAL SPDT 10QFN | 63% | View |
| AOZ6238QT#A | Alpha & Omega Semiconductor Inc. | IC USB 2.0 SWITCH 10QFN | 63% | View |
| AOZ6238QT | Alpha & Omega Semiconductor Inc. | IC ANLG SWITCH DUAL SPDT 10QFN | 63% | View |
Submit your RFQ for PI5A4684GAEX and get a quote within 24 hours.
