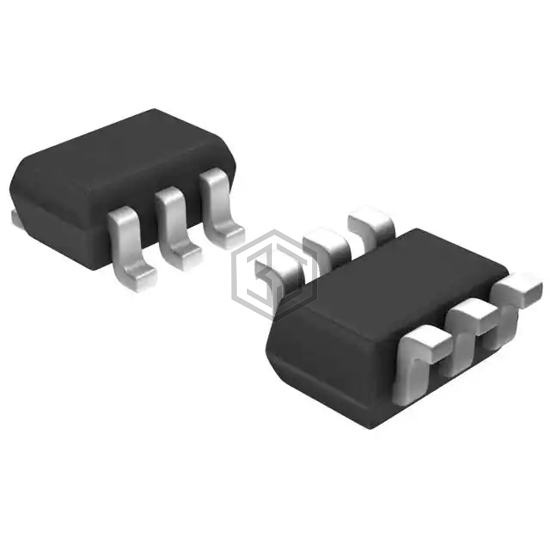

IC ANALOG SWITCH SPDT SC70-6
PI5A4599ACEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC ANALOG SWITCH SPDT SC70-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 3,759
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 10ns |
| -3db Bandwidth | 30MHz |
| Charge Injection | 1.5pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363-6 (SC-70) |
PI5A4599ACEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4617ESE | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 100% | View |
| MAX4619ESE | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 3 X SPDT 16SOIC | 86% | View |
| MAX4645EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 66% | View |
| ADG849YKSZ-REEL | Analog Devices Inc. | IC SWITCH SPDT SC70-6 | 65% | View |
| ISL43L210IHZ-T | Renesas Electronics America Inc | IC SWITCH SPDT SC70-6 | 53% | View |
| ISL43L110IHZ-T | Renesas Electronics America Inc | IC SWITCH SPST SC70-5 | 53% | View |
Submit your RFQ for PI5A4599ACEX and get a quote within 24 hours.
