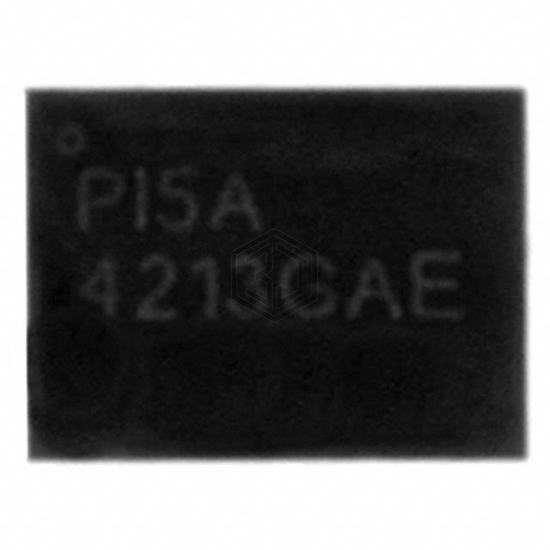

IC SWITCH DUAL SP3T 12CSP
PI5A4213GAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SP3T 12CSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFBGA, WLCSP, number of circuits 2.
In Stock: 9,949
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 2Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 12ns |
| -3db Bandwidth | 30MHz |
| Charge Injection | 35pC |
| Channel Capacitance (CS(off), CD(off)) | 50pF |
| Current - Leakage (IS(off)) (Max) | 80nA |
| Crosstalk | -72dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFBGA, WLCSP |
| Supplier Device Package | 12-CSP (2.0x1.5) |
PI5A4213GAEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43L111IHZ-T | Renesas Electronics America Inc | IC SWITCH SPST SC70-5 | 70% | View |
| MAX4645EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 57% | View |
| MAX4646EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 57% | View |
| MAX4646EUT+T | Analog Devices Inc./Maxim Integrated | IC SW ANLG 2.5 OHM SPST SOT23-6 | 57% | View |
| MAX4645EUA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 8UMAX | 57% | View |
| MAX4619ESE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 3 X SPDT 16SOIC | 53% | View |
