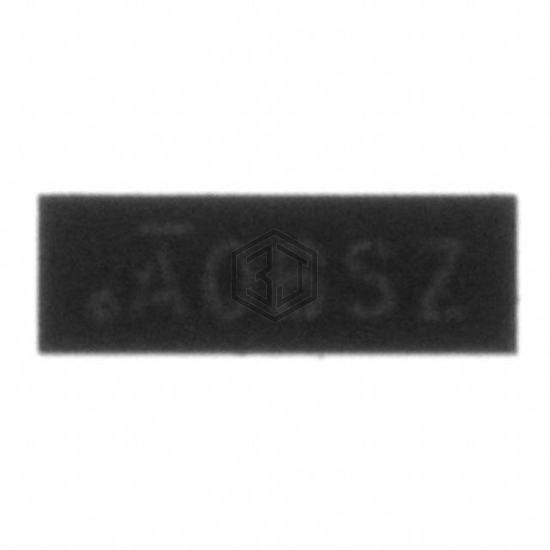

IC SWITCH DUAL SPDT 12TDFN
PI5A4158ZAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPDT 12TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFDFN, number of circuits 2.
In Stock: 4,656
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 18ns, 20ns |
| -3db Bandwidth | 150MHz |
| Charge Injection | 35pC |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN |
| Supplier Device Package | 12-TDFN (3x1) |
PI5A4158ZAEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI5A4157CEX-1516 | Diodes Incorporated | IC SWITCH SPDT 0.8 OHM 6-SOT363 | 94% | View |
| MAX4639EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TSSOP | 61% | View |
| MAX4639ETE+T | Analog Devices Inc./Maxim Integrated | 3.5 OHM, SINGLE 8:1 AND DUAL 4:1 | 61% | View |
| MAX4674EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER QUAD 2X1 16TSSOP | 57% | View |
| MAX4674ETE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER QUAD 2X1 16TQFN | 57% | View |
| MAX4674EEE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER QUAD 2X1 16QSOP | 57% | View |
Submit your RFQ for PI5A4158ZAEX and get a quote within 24 hours.
