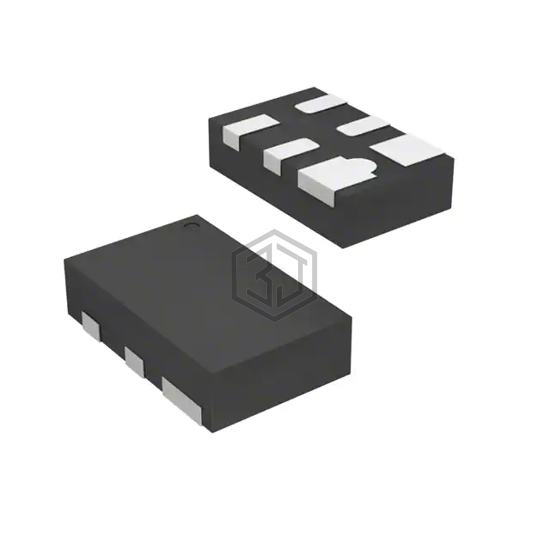

IC SWITCH CMOS SPDT UDFN-6
PI5A3157BZUEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH CMOS SPDT UDFN-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 4,657
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 13Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 3.5ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 2.3pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -54dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-UDFN (1x1) |
PI5A3157BZUEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI5A3157BC6E+DMX | Diodes Incorporated | IC SWITCH SPDT SC70-6 | 100% | View |
| PI5A3157CEX | Diodes Incorporated | IC ANLG SW/MUX/DEMUX SPDT SC70-6 | 100% | View |
| PI5A3157BZUE+DMX | Diodes Incorporated | IC SWITCH SPDT 6-UDFN | 100% | View |
| LNLASB3157DFT2G | onsemi | IC SWITCH SPDT SOT363 | 93% | View |
| LNLASB3157DFT2 | onsemi | IC SWITCH SPDT SOT363 | 93% | View |
| TS5A1066YZPR | Texas Instruments | IC SWITCH SPST 5DSBGA | 71% | View |
Submit your RFQ for PI5A3157BZUEX and get a quote within 24 hours.
