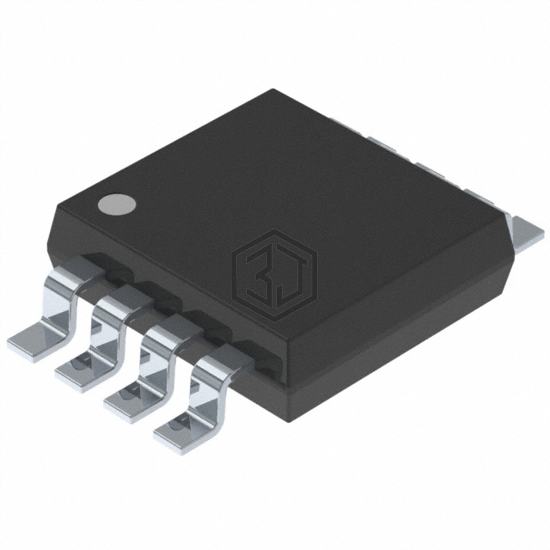

IC ANALOG SWITCH SPST DUAL 8MSOP
PI5A127UEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC ANALOG SWITCH SPST DUAL 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 7,301
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 7ns |
| -3db Bandwidth | 326MHz |
| Charge Injection | 1.6pC |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 5.5pF |
| Current - Leakage (IS(off)) (Max) | 200pA (Typ) |
| Crosstalk | -43dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
PI5A127UEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI5A127W | Diodes Incorporated | IC SWITCH DUAL SPST 8SOIC | 100% | View |
| PI5A121BCEX | Diodes Incorporated | IC SWITCH SINGLE SPST SC70 | 94% | View |
| MAX4643EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 93% | View |
| MAX4645EUT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-6 | 73% | View |
| MAX4645EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 8UMAX | 73% | View |
| PI5A100QEX | Diodes Incorporated | IC SWITCH QUAD SPDT 16QSOP | 67% | View |
Submit your RFQ for PI5A127UEX and get a quote within 24 hours.
