USB2 SWITCH U-QFN2015-10

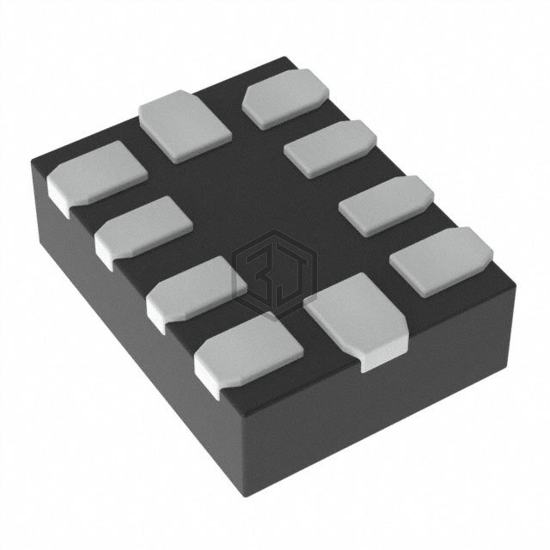

PI3USB4000BZUAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. USB2 SWITCH U-QFN2015-10. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 1.
In Stock: 1,762
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 6V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 100µs, 50ns (Typ) |
| -3db Bandwidth | 1GHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -35dB @ 240MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.5x2) |
PI3USB4000BZUAEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI3USB4000AZMEX | Diodes Incorporated | IC SWITCH SPDT SINGLE 10UQFN | 100% | View |
| PI3USB4000DQ1ZUAEX | Diodes Incorporated | USB2 SWITCH U-QFN1520-10 T&R 3K | 100% | View |
| PI3USB4000D | Diodes Incorporated | USB2 SWITCH,U-QFN1520-10,T&R,3K | 100% | View |
| PI3USB4002A | Diodes Incorporated | USB2 SWITCH,U-QFN1520-10,T&R,3K | 100% | View |
| PI3USB4000AZUAEX | Diodes Incorporated | USB2 SWITCH U-QFN2015-10 T&R 3K | 97% | View |
| PI3USB4000AZUAEX-01 | Diodes Incorporated | USB2 SWITCH U-QFN2015-10 T&R 3K | 97% | View |
Submit your RFQ for PI3USB4000BZUAEX and get a quote within 24 hours.
