PCIE SWITCH X1-QFN2040-24 T&R 3.

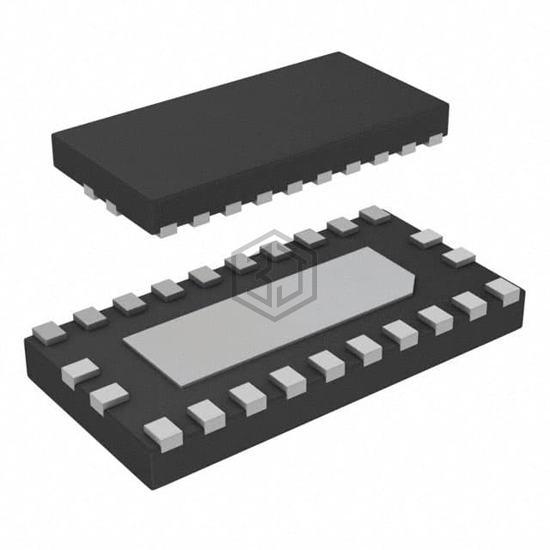

PI3DBS16213XEAEX is a Interface - Analog Switches - Special Purpose manufactured by Diodes Incorporated. PCIE SWITCH X1-QFN2040-24 T&R 3.. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 24-XFQFN Exposed Pad.
In Stock: 2,463
| Attribute | Value |
|---|---|
| Product Status | Active |
| Applications | USB |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Switch Circuit | SP3T |
| Number of Channels | 2 |
| On-State Resistance (Max) | - |
| Voltage - Supply, Single (V+) | 3.3V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 12GHz |
| Features | Bi-Directional, USB 3.0, USB 3.1 |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-XFQFN Exposed Pad |
| Supplier Device Package | 24-X1QFN (2x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI3DBS16213ZLEX | Diodes Incorporated | PCIE SWITCH W-QFN2545-30 | 100% | View |
| PI3DBS12412ZLEX | Diodes Incorporated | IC MUX/DEMUX 2:1 12GBPS | 97% | View |
| PI3DBS16212ZBBEX | Diodes Incorporated | PCIE SWITCH V-QFN2545-20 T&R 3.5 | 96% | View |
| PI3DBS16212XUAEX | Diodes Incorporated | PCIE SWITCH X2-QFN2020-18 | 96% | View |
| PI3DBS16413ZHEX-55 | Diodes Incorporated | PCIE SWITCH V-QFN3590-42 | 90% | View |
| PI3DBS16413ZHEX | Diodes Incorporated | PCIE SWITCH V-QFN3590-42 | 90% | View |
