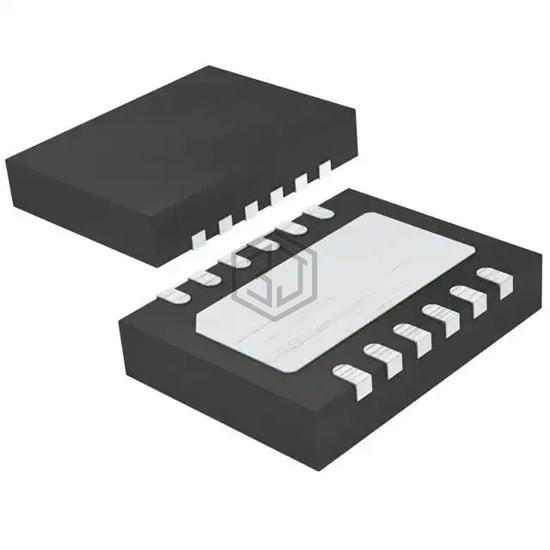

IC SWITCH DUAL SPDT 12TDFN
PI3A3160ZEEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPDT 12TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFDFN Exposed Pad, number of circuits 2.
In Stock: 9,966
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 450mOhm |
| Channel-to-Channel Matching (ΔRon) | 80mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.5V ~ 4.2V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 20ns, 12ns |
| -3db Bandwidth | - |
| Charge Injection | 100pC |
| Channel Capacitance (CS(off), CD(off)) | 56pF, 56pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -41dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-TDFN (3.5x3) |
PI3A3160ZEEX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PI3A3160ZGEX | Diodes Incorporated | IC SWITCH DUAL SPDT 12TDFN | 100% | View |
| 74HC2G66GT,115 | Nexperia USA Inc. | IC ANLG SWITCH SPST DUAL 8XSON | 71% | View |
| ISL84762IU | Intersil | SPDT ANALOG SWITCH, 2 FUNC, 1 CH | 70% | View |
| 74HC1G66GW-Q100H | Nexperia USA Inc. | IC ANLG SWITCH SPST 5TSSOP | 60% | View |
| PI5A392AQEX | Diodes Incorporated | IC SWITCH QUAD SPST 16QSOP | 55% | View |
| MAX4707ELT+T | Analog Devices Inc./Maxim Integrated | LOW-VOLTAGE, 2, SPST, CMOS ANALO | 54% | View |
